Okay, so I’ve been needing a way to haul my bike around without having to ride it everywhere. I looked at buying a trailer, but man, those things are pricey! So, I thought, “I can build something, right?” That’s how this whole motorcycle trailer bracket project started.
Planning and Gathering
First things first, I needed a plan. I sketched out a basic idea on a napkin – nothing fancy, just enough to get the general shape and where the bracket would connect to my existing trailer hitch. My trailer is the ordinary small one. And I got my friend’s old trailer which he doesn’t use. I measured everything like five times, you know, measure twice, cut once, and all that.
Then came the fun part – gathering materials. I hit up the local hardware store and grabbed some:
- Steel square tubing: I went with a thicker gauge because, well, it’s holding a motorcycle.
- Flat steel plates: These would be for reinforcement and mounting points.
- Bolts, nuts, and washers: Lots of them, and I made sure they were heavy-duty.
- Welding supplies: Since I’ve got a welder (a cheap one, but it works!), I needed welding rods and some safety gear.
Cutting and Grinding
With all my materials in hand, it was time to start cutting. I used a metal-cutting chop saw – made quick work of the tubing. After cutting, I used a grinder to smooth out the edges. Safety first! Got my gloves, glasses, and a face shield on. There were sparks, like the 4th of July!
The Welding Begins
This is where things got a little tricky. Welding is something I’m okay at, but I’m no pro. I started by tacking the pieces together – little welds just to hold everything in place. Then, I went back and did full welds along all the seams. I made sure to get good penetration, you know, so it’s strong enough. It wasn’t pretty, some of my welds looked like bird droppings, but hey, they held!
Reinforcements and Mounting
Once the main frame of the bracket was welded, I added the flat steel plates. These were for reinforcing the corners and for where the bracket would bolt onto the trailer. I drilled holes through the plates and the tubing, making sure everything lined up perfectly with my trailer hitch.
Test Fit and Adjustments
Before I went any further, I did a test fit. Bolted the bracket onto the trailer. It was a little off-center at first. So, I had to do some minor adjustments, grinding down a bit here, adding a washer there. Finally, it fit nice and snug.
The Final Touches
With the fit sorted, I took the bracket off and gave it a good coat of rust-proof paint. Black, of course, to match the trailer. Once the paint dried, I bolted it back on for the final time, torquing everything down tight.

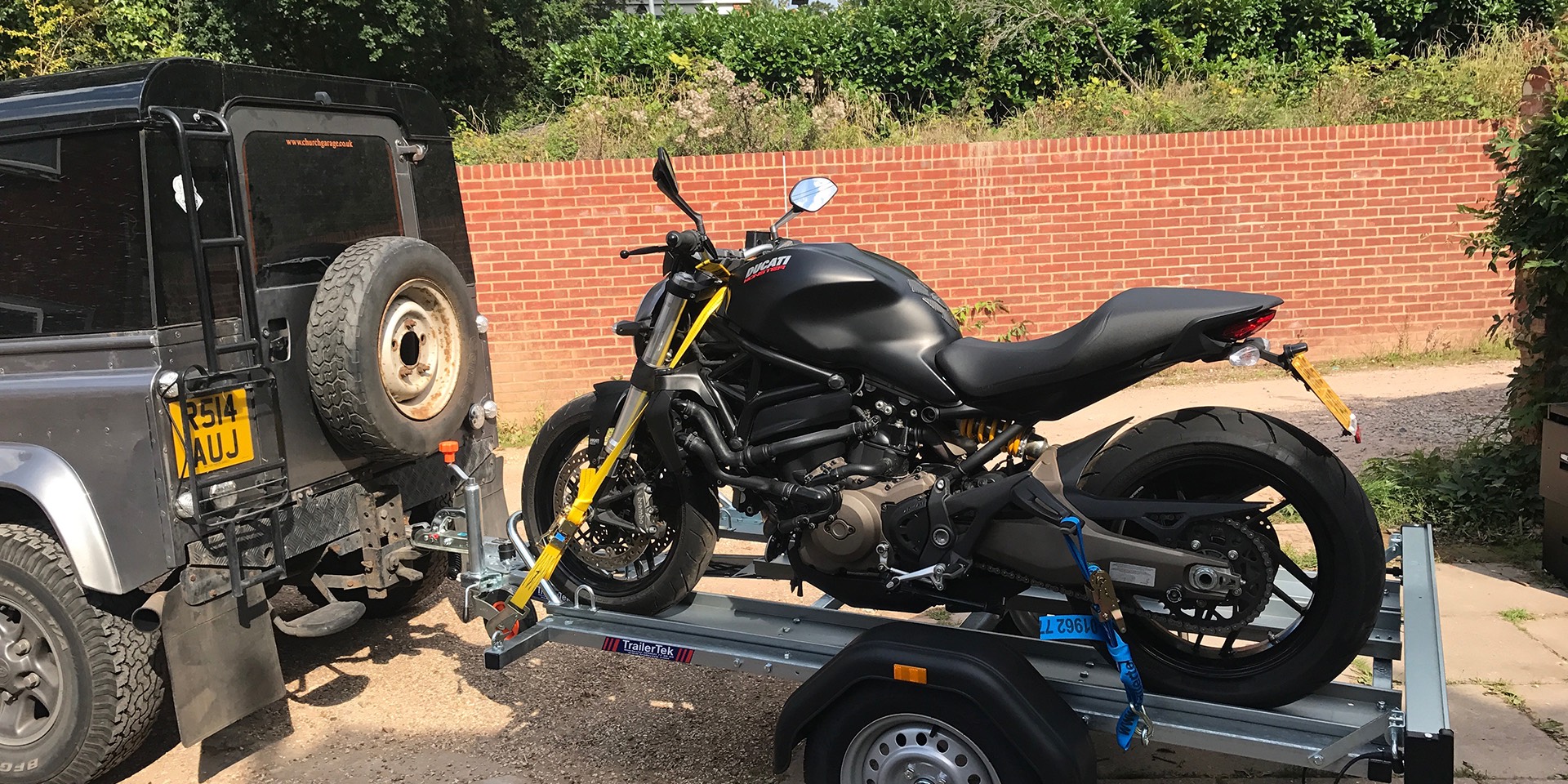

Loading the Bike
Finally I can load my bike into trailer. The bracket worked perfectly! I had it on a short ride. The bike felt secure. It is a success!
So, that’s how I built my motorcycle trailer bracket. It wasn’t a super complicated project, but it definitely saved me some money, and it’s satisfying to know I made it myself. If you’re thinking about doing something similar, just take your time, plan it out, and don’t be afraid to get your hands dirty!
